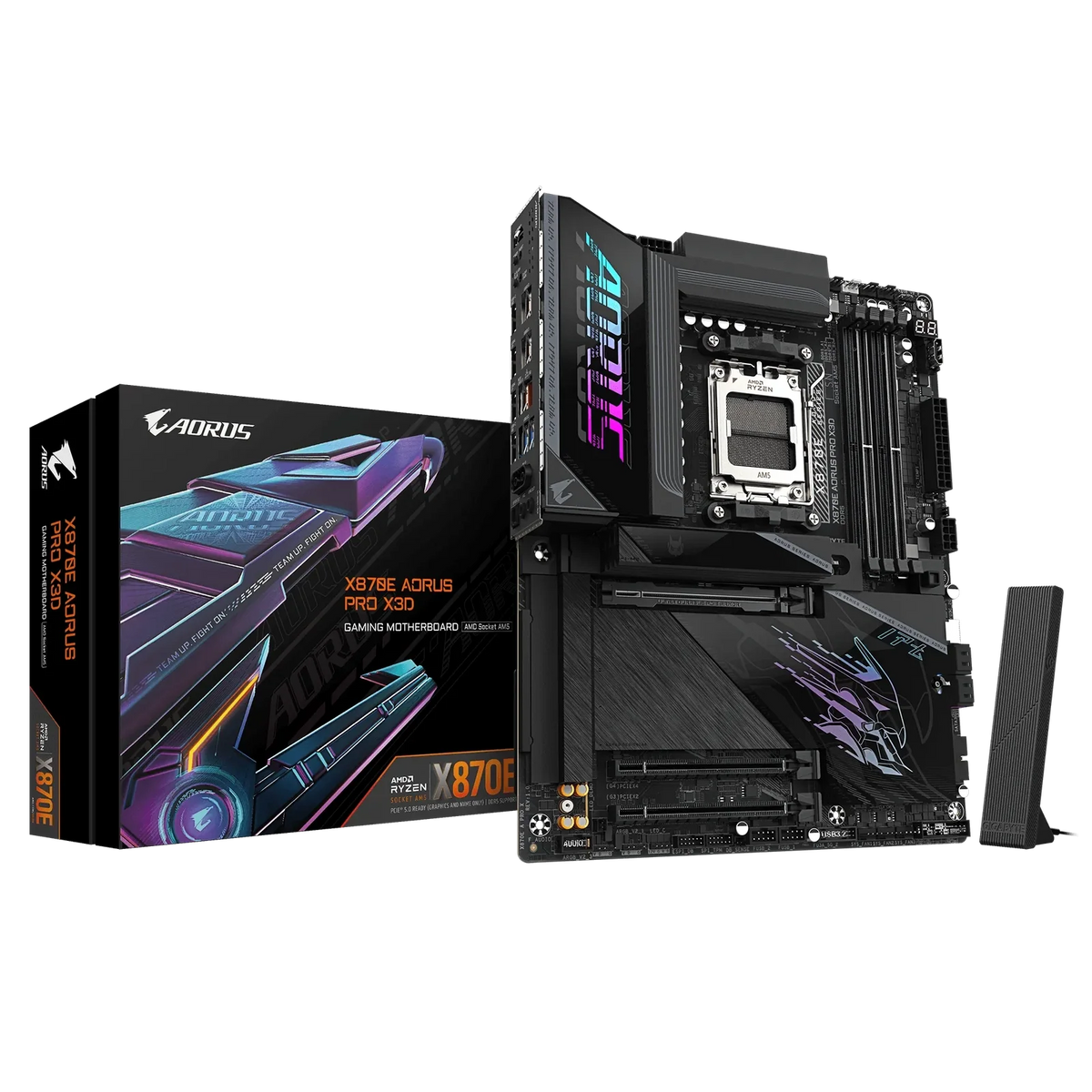

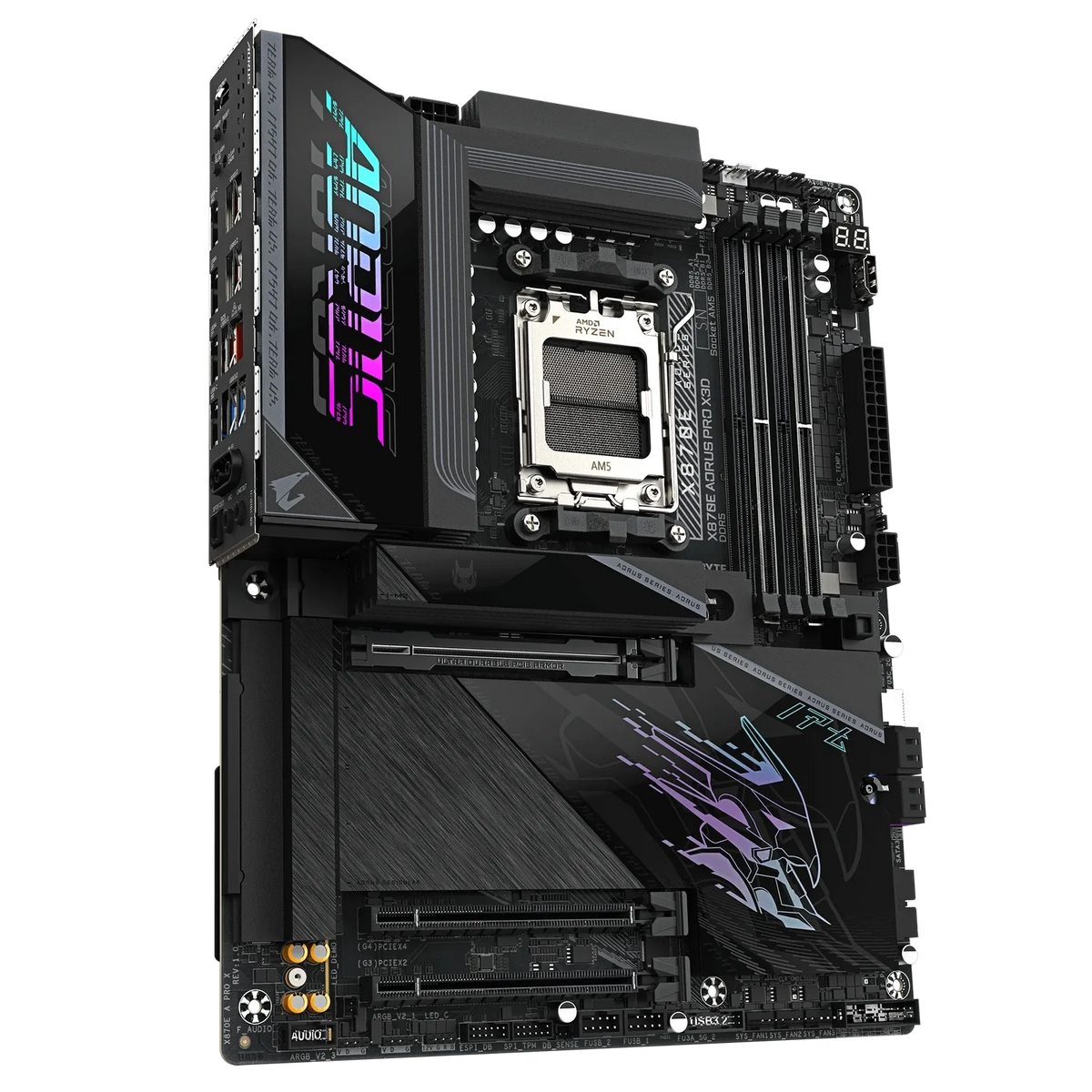

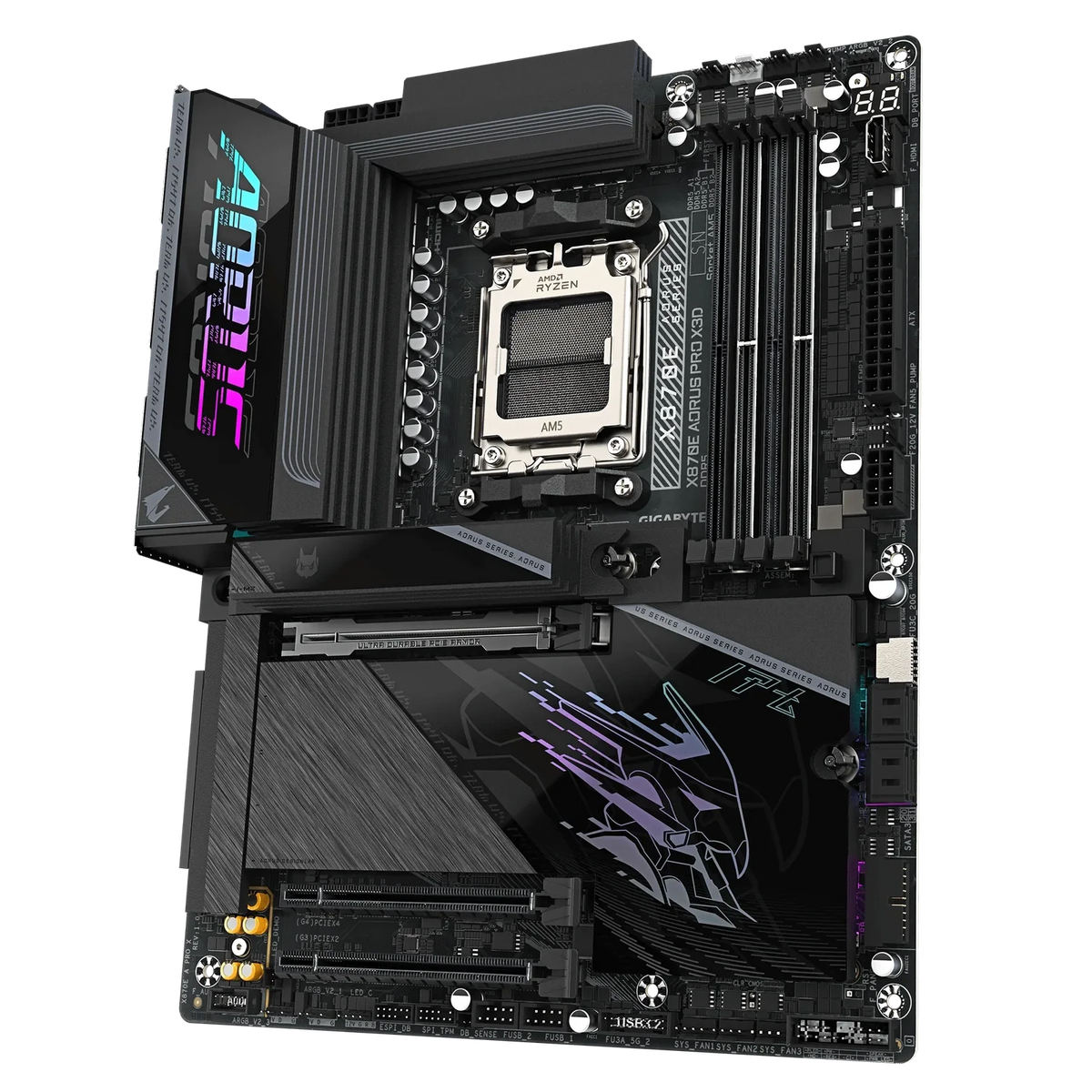

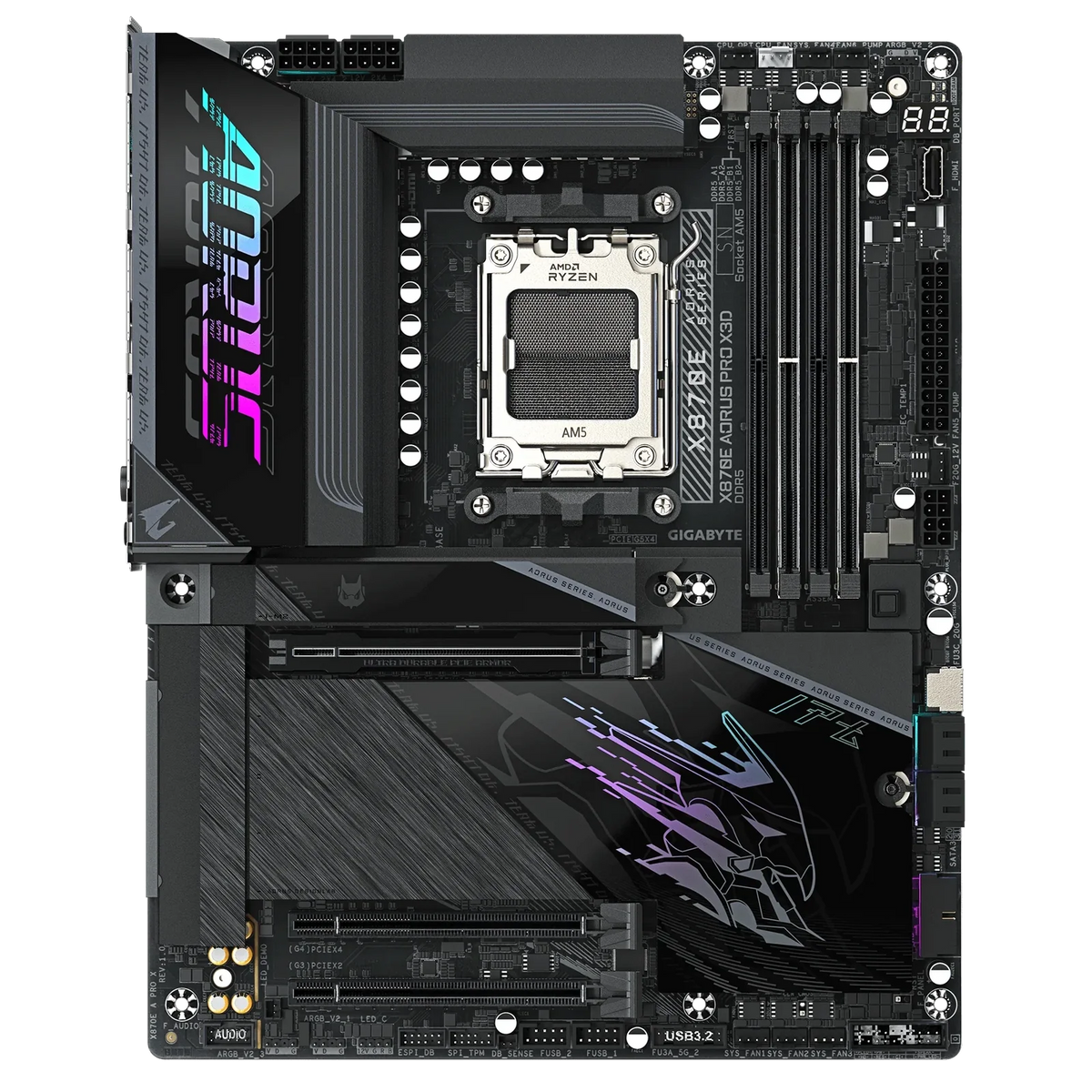

Gigabyte X870E Aorus Pro X3D ATX AM5 Motherboard

Gigabyte X870E Aorus Pro X3D ATX AM5 Motherboard

$513.00 USD
$513.00 USD
Sale Sold out
Shipping calculated at checkout.
GIGABYTE X870E AORUS PRO X3D Motherboard

GIGABYTE X870E AORUS PRO X3D

Premium AMD X870E Motherboard with X3D Technology for Ryzen 9000

The GIGABYTE X870E AORUS PRO X3D delivers elite performance for gaming and content creation. With revolutionary X3D Turbo Mode 2.0 powered by AI optimization, this motherboard unlocks incredible gaming potential when paired with AMD Ryzen X3D processors.

Featuring dual Channel DDR5 support up to 9000MT/s, PCIe 5.0 graphics and storage capabilities, Wi-Fi 7 connectivity, and 5GbE LAN, this board provides the foundation for a high-performance AMD-based system.

Key Features

  • X3D Turbo Mode 2.0 - AI-powered gaming performance optimization
  • AMD Socket AM5 - Supports Ryzen 9000 / 8000 / 7000 Series processors
  • DDR5 up to 9000MT/s - Quad-channel memory with AMD EXPO support
  • PCIe 5.0 Ready - PCIe 5.0 x16 slot + 4 M.2 slots (2x PCIe 5.0)
  • Wi-Fi 7 - Next-gen wireless with directional antenna
  • 5GbE LAN - Ultra-fast wired networking
  • 18+2+2 Phases VRM - Digital twin power design for stable performance
  • Dual USB4 Type-C - With DP-Alt mode and 65W fast charging
  • M.2 EZ-Flex - High-efficiency heat dissipation for M.2 SSDs

At a Glance

Chipset AMD X870E
Form Factor ATX
Memory Slots 4 x DDR5 (max 256GB)
PCIe Slots 1x PCIe 5.0 + 1x PCIe 4.0 + 1x PCIe 3.0
M.2 Slots 4 (2x PCIe 5.0, 2x PCIe 4.0)
Warranty 3 Years

Processor

Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 7000, 8000, 9000 Series

Memory

Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory channels Dual-channel
Maximum internal memory 256 GB
Supported memory clock speeds Up to 9000 MHz
ECC compatibility Non-ECC

Storage

Supported storage drive interfaces M.2, PCIe 4.0, PCIe 5.0, SATA III
Supported storage drive types HDD & SSD
Number of M.2 (M) slots 4
RAID support Yes
RAID levels 0, 1, 5, 10

Expansion Slots

PCI Express x16 (Gen 5.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 3.x) slots 1
1st M.2 key size 25110
1st M.2 highest PCI Express generation 5.0
2nd M.2 key size 22110
2nd M.2 highest PCI Express generation 5.0
3rd/4th M.2 highest PCI Express generation 4.0

Graphics

Maximum resolution 4096 x 2304 pixels
HDCP version 2.3
DirectX version 12.0
HDMI version 2.1
DisplayPort version 1.4

Network & Connectivity

Ethernet interface type 2.5GbE, 5GbE, GbE
LAN controller Realtek RTL8126
Wi-Fi Yes (Wi-Fi 7)
Wi-Fi standards 802.11a/b/g/n/ac/ax/be
Wi-Fi controller Qualcomm QCNCM865
Bluetooth Yes (v5.4)

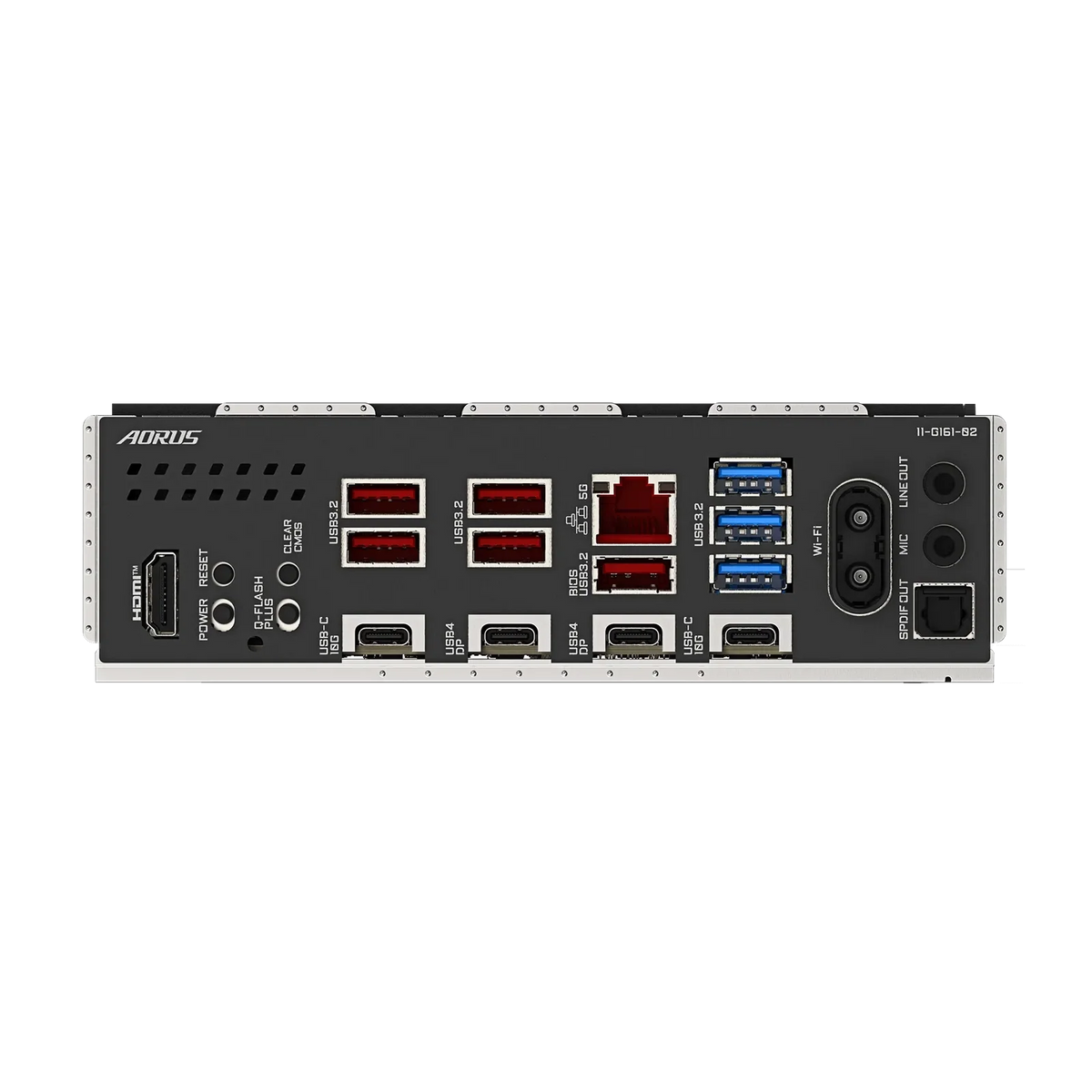

Rear Panel I/O

USB 3.2 Gen 1 Type-A ports 3
USB 3.2 Gen 2 Type-A ports 5
USB 3.2 Gen 2 Type-C ports 2
USB4 Gen 2x2 ports 2
HDMI ports 1
Ethernet LAN (RJ-45) ports 1
S/PDIF out Yes
Digital audio optical out 1

Audio

Audio chip Realtek ALC1220-VB
Audio output channels 7.1 channels

Features

Motherboard chipset AMD X870E
Product colour Black
Motherboard form factor ATX
PC health monitoring CPU, Fan, Temperature, Voltage, Water cooling
Windows operating systems supported Windows 11 x64

Internal I/O

USB 2.0 connectors 2
USB 3.2 Gen 1 connectors 2
USB 3.2 Gen 2x2 connectors 1
SATA III connectors 4
CPU fan connectors 2
Chassis fan connectors 6
RGB LED pin headers 4
Water pump connectors 3

BIOS

BIOS type UEFI AMI
BIOS memory size 512 Mbit
Clear CMOS button Yes

Dimensions & Weight

Width 305 mm
Depth 244 mm
Height 35 mm
Weight 3.73 kg

Packaging

Package dimensions (W x D x H) 345 x 294 x 80 mm
Package weight 4.25 kg
Antenna included Yes
Screws included Yes
Batteries included Yes
Country of origin Taiwan

Warranty

Warranty period 3 years
